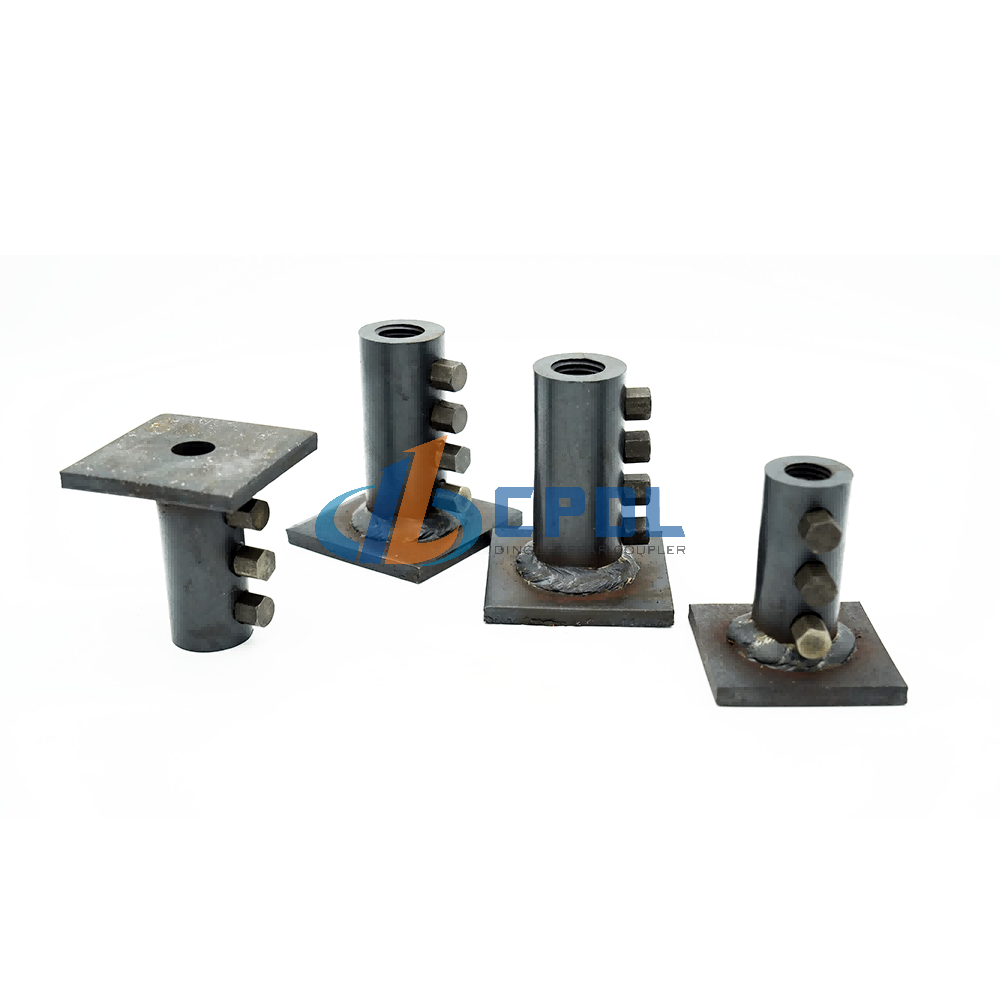

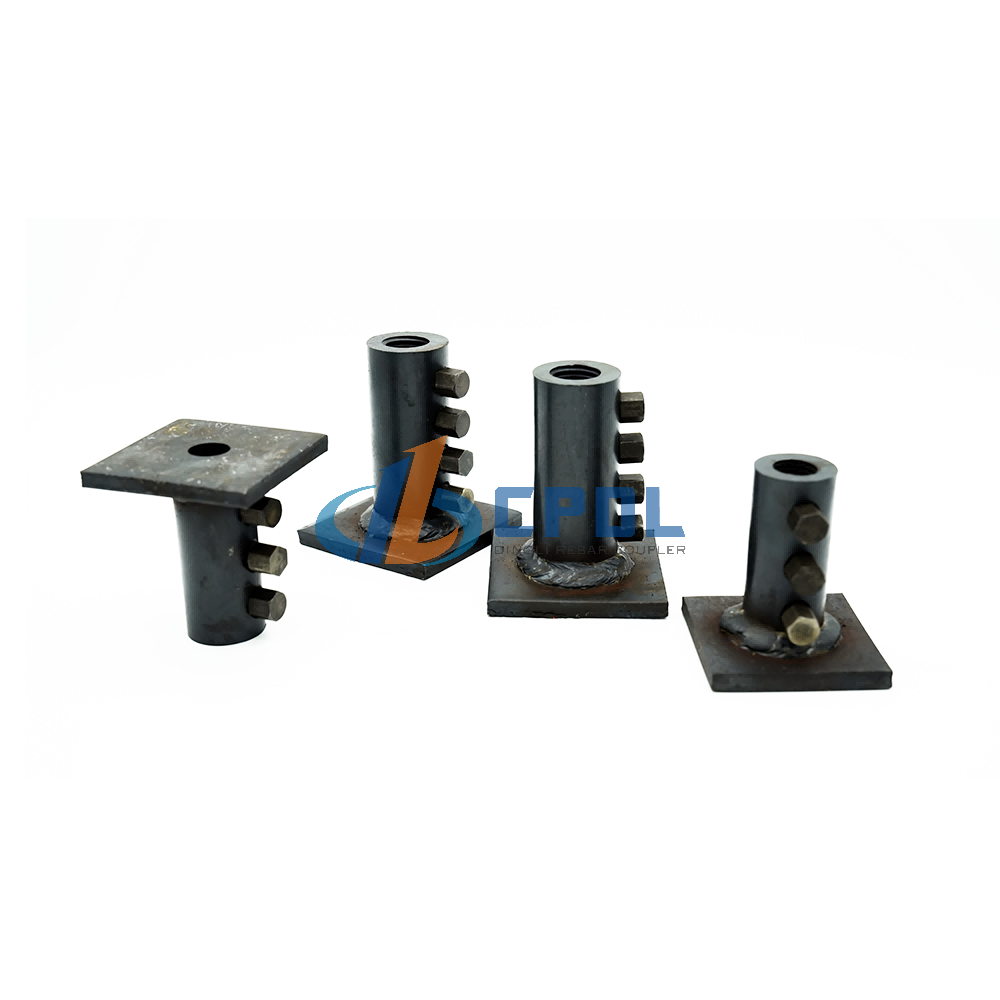

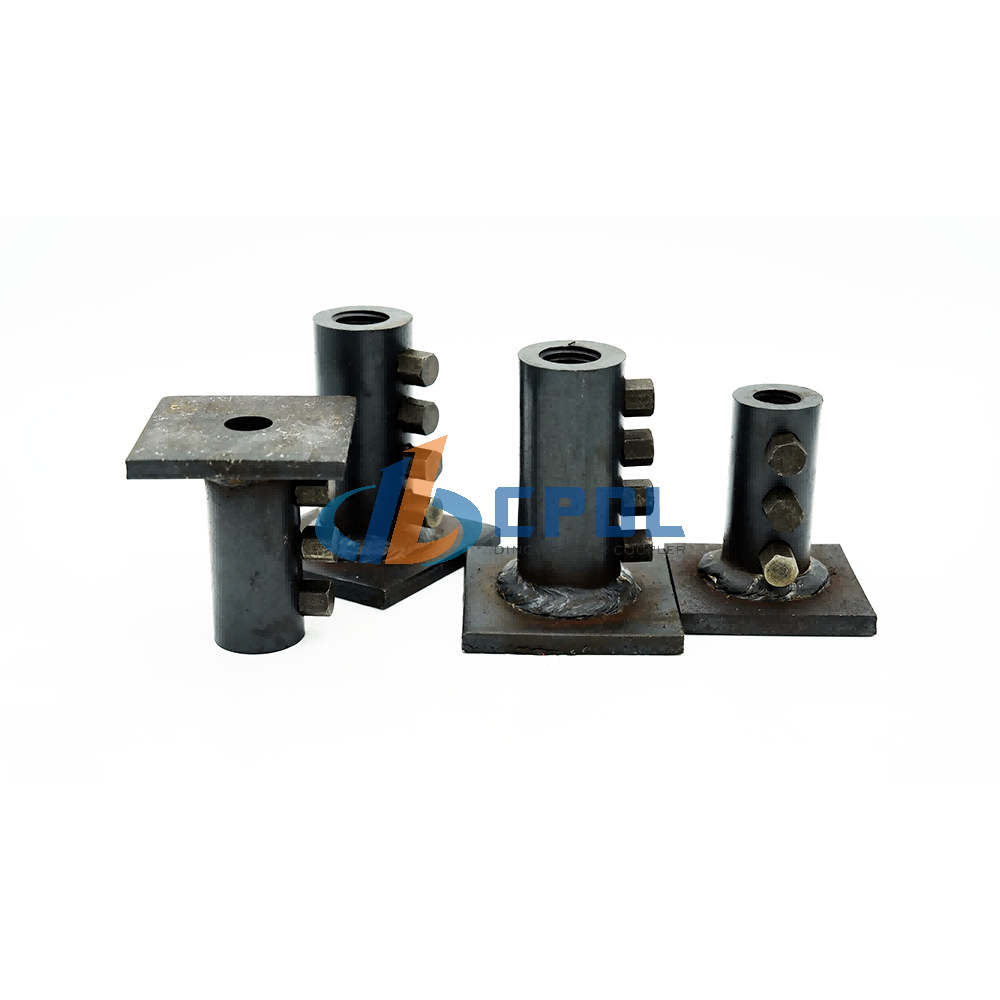

Full Weldable Bolt Screw Rebar Coupler

Weldable Bolt Screw Couplers are designed to provide dead end embedment for bars in concrete. This helps to reduce congestion and simplify the placement of rebars by removing the need for hooked ends.

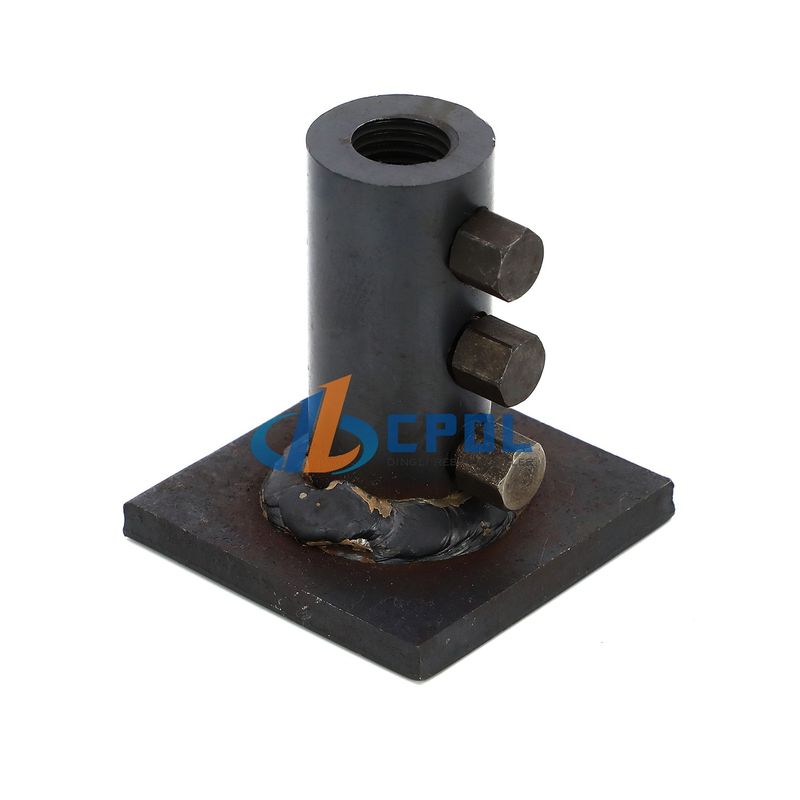

Distinct from pure threaded couplers, this weldable screw coupler is designed for welding connection scenarios. The outer sleeve can be directly welded on steel plates, steel columns or embedded steel parts on construction site. Insert rebar into sleeve hole and lock firmly by tightening side positioning bolts, no requirement for rebar end threading processing. It is an optimal solution for projects where rebar threading cannot be operated.

Size: 12mm-40mm

Meet the requirements of steel bars: HRB500/B500B/SD600/ASTM 75

Material: 40CR

Standard: BS4449, ISO15835,ACI318

Craft: Precision tube machining + built-in fastening bolt structure

Raw Material: Low carbon alloy steel

▎Advantage:

• High connection strength and stable performance.

• Easy installation and disassembly, high efficiency.

• Good compatibility with various bolts and equipment.

• High durability, not easy to wear or loosen.

• Safe and reliable, suitable for industrial and construction applications.

▎Application & Installation Position

• Secondary structure, non-load-bearing reinforcement, construction reinforcement, constructional column, lintel, ring beam, tie bar, masonry tie bar connection

• Prefabricated components, prefabricated assemblies, prefabricated stairs, prefabricated slabs, prefabricated partition wall reinforcement connection

• Temporary fixation, reinforcement, and maintenance projects, temporary support, on-site reinforcement, old building renovation

• Areas with extremely limited space, impossible for threading or extrusion, pipe well, small column pier, concealed installation area

• Projects with extremely high speed requirements, simple projects, multi-story civil buildings, simple factories, rural self-built houses, small-scale renovation projects

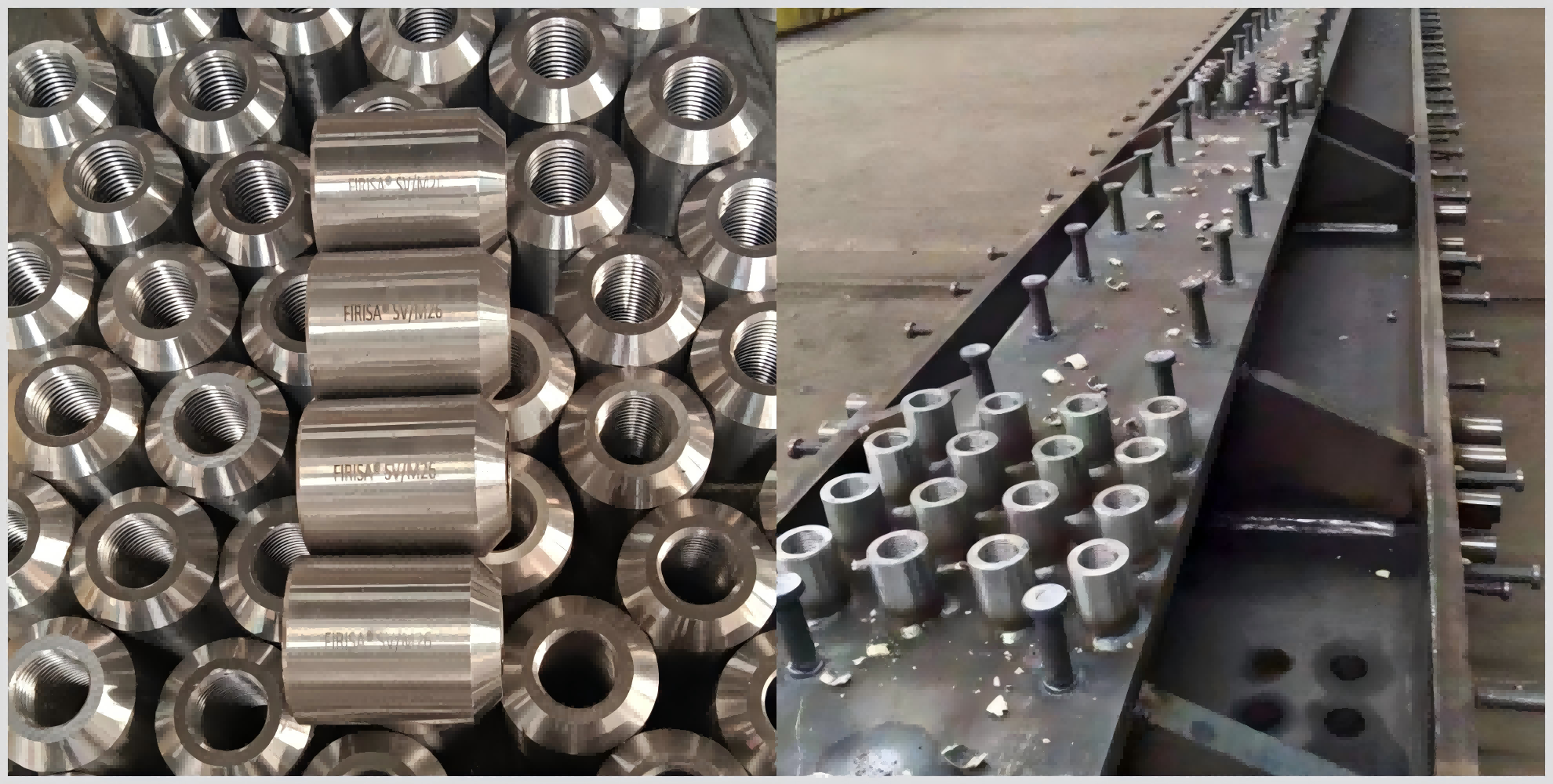

• Applied in steel-concrete composite structure, steel column connection, prefabricated component fixing, equipment foundation, bridge steel plate anchoring and irregular embedded rebar construction works.

▎Production & Quality Inspection

Raw steel tubes go through material composition detection before cutting. Bolt holes are positioned and drilled by CNC equipment to guarantee screw matching precision. Finished products take random tension test to confirm locking strength meets international construction acceptance criteria.

▎Packing & Shipment

Regular specifications packed in export cartons, bulk cargo loaded on fumigated wooden pallets. Spot goods deliver within 3–5 working days, non-standard dimension supports OEM customized production.
