Energy Saving Rib Peeling Thread Rolling Machine

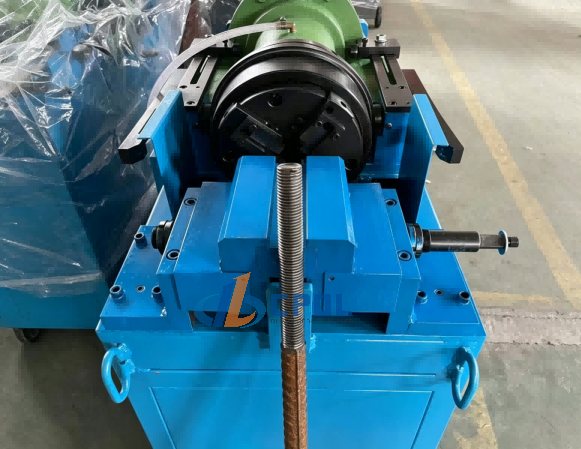

Operators manually push rebar into working inlet, machine automatically strips ribs then rolls threads step by step. Simple operation and low investment for construction site temporary processing.

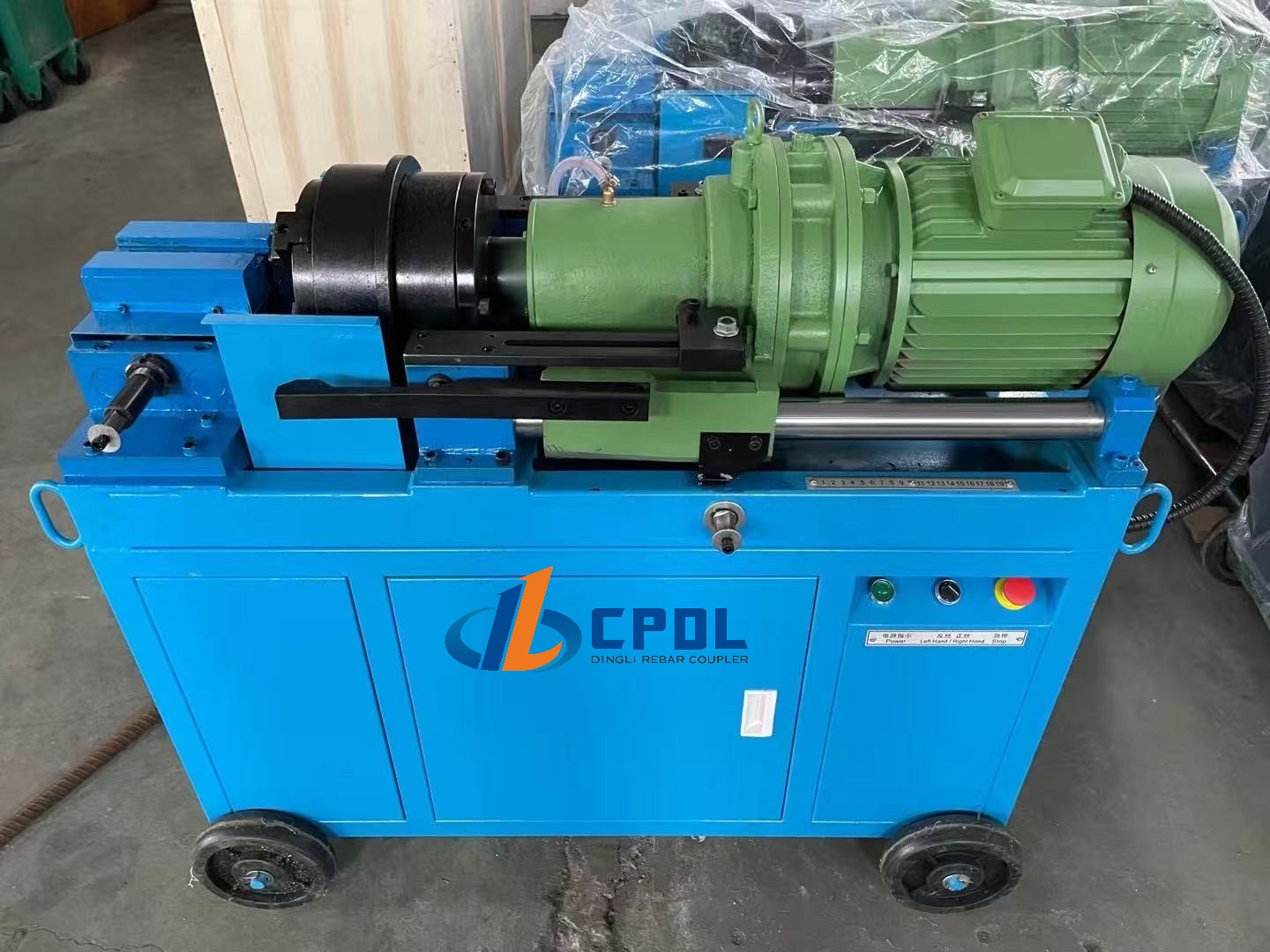

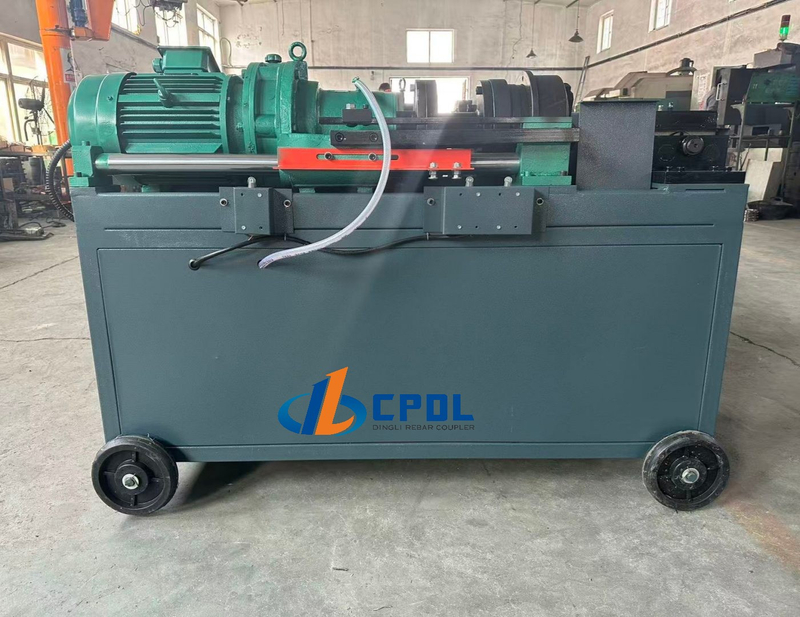

▎MAIN TECHNICAL PARAMETERS（BTCP-40F-100）

• Equipment Model:BTCP-40F-100

• Rebar Dia: D16-D40

• Equipment Weight:470KG

• Dimensions （LxW×H）:115cm×47cmx107 cm

• Main Motor Power:5.5 kW or 4KW

• Water Pump Motor Power:50 W

• Working Voltage:380V or 415V(50Hz, three-phase four-wire system)

• Headstock Rotation Speed:50 rpm (1:29) or 41 rpm (1:35)

• Maximum Length of ProcessedThread Heads:100mm for straight thread heads/70mm for tapered thread heads

• Processing Speed:Ф32 steel bar tapered thread heads:Appioximataly 20 seconds for Ф32 steel bar tapered                                           thread heads

                                 Ф32 upsetting coarse straight thread heads:Approximately 12 seconds for Ф32 upsetting                                         coarse straight thread heads

• Optional Cutting Tools: 3° tapered thread comb blades:P2.0. P2.5. P3.0 (Pitch)

• straight thread comb: P2.5. P3.0. P3.5. P4.0. P4.5

• The Rib Peeling Thread Rolling Machine is a dedicated rebar processing tool. It strips rebar surface ribs first, then rolls precise threads, delivering high-quality threaded ends for reliable rebar connections.

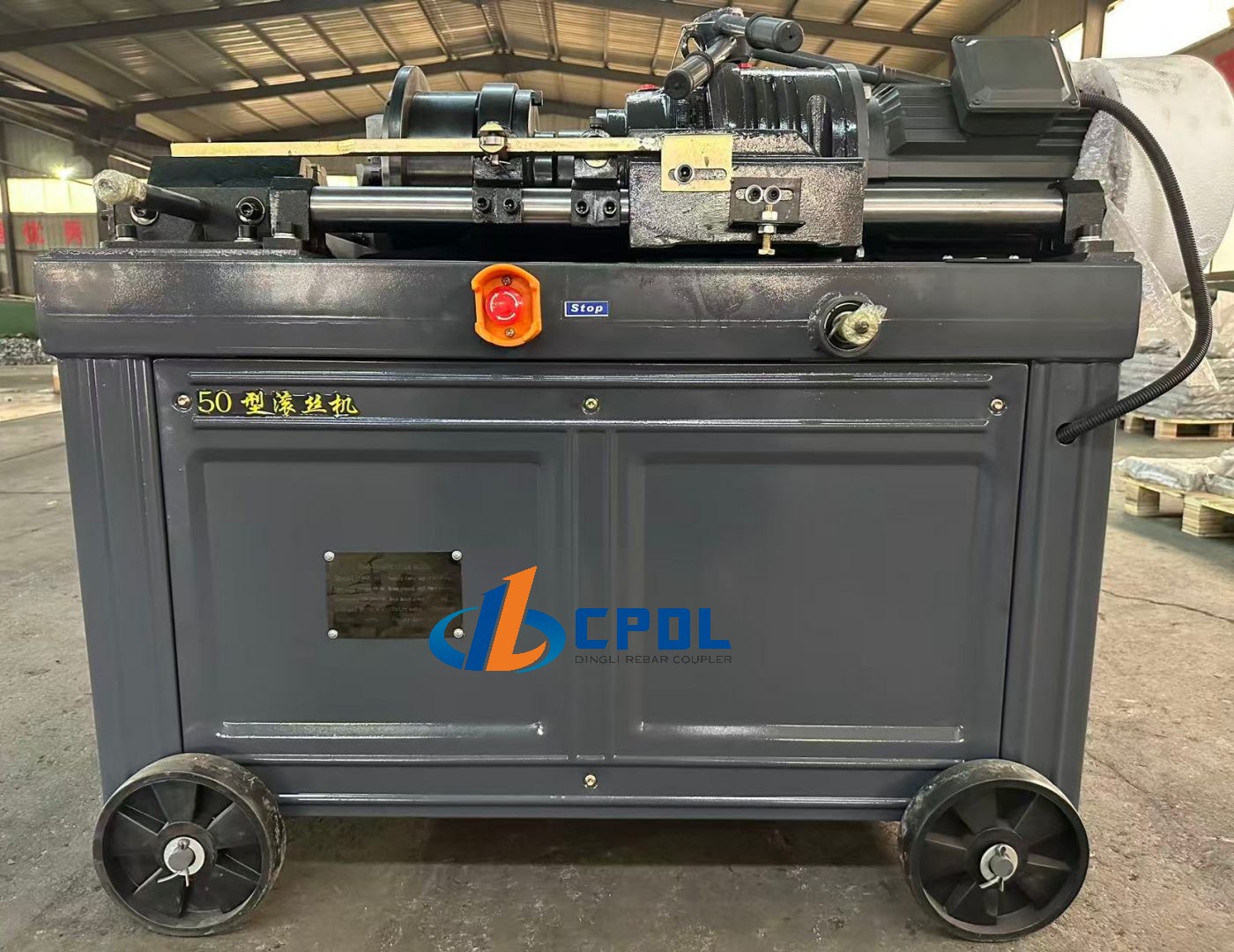

▎MAIN TECHNICAL PARAMETERS（HGS-50）

• Processing range: Ф16-Ф40mm

• Main motor power: 7.5KW

• Power supply: three-phase 380V 60HZ

• Spindle speed: 85r/min

• Maximum processing length: 100mm for right-handed thread, 80mm for left-handed thread

• Weight: 300kgs/Set

• Size: 1250*700*1080

• Threading Roller :Semicolon

• Blade Size: 11*28*35

• The Rib Peeling Thread Rolling Machine is a dedicated rebar processing tool. It strips rebar surface ribs first, then rolls precise threads, delivering high-quality threaded ends for reliable rebar connections.

▎Advantage

Low purchase cost, easy moving to construction field, simple maintenance for field operators.

▎Application

Construction site onsite rebar threading, small processing yard intermittent production

▎FAQ

Can machine move between different construction sites conveniently?

Light body design supports easy transfer by forklift.

▎TKD Description

Economical semi-auto rib peeling thread rolling machine with manual feeding for field straight rebar thread making at construction projects.
