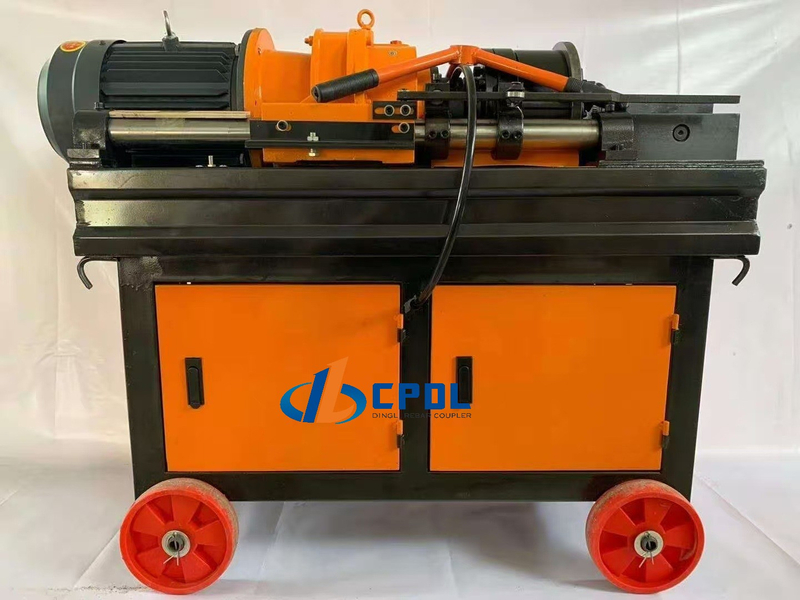

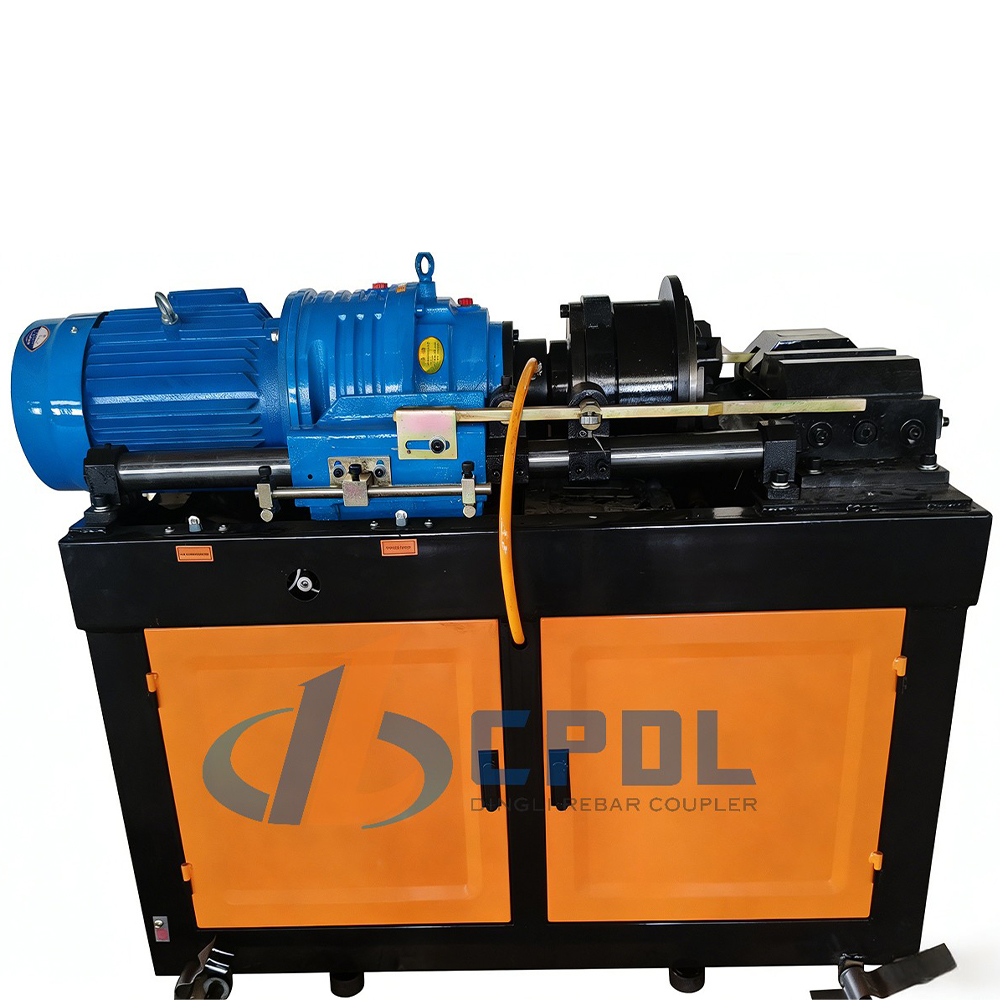

Full Auto Rib Peeling Parallel Thread Rolling Machine For Straight Thread Rebar Processing

One-piece structure removes outer rebar ribs first by alloy cutter head, then cold-roll standard parallel thread without cutting steel matrix, exclusively for straight thread coupler raw bar machining. Full auto feeding saves repeated clamping.

▍MAIN TECHNICAL PARAMETERS：

Thread roller diameter: 62.5

Thread roller pitch: 2.0, 2.5, 3.0, 3.5

Processing steel bar specifications and thread roller selection: 12-16 (Choose 2.0 thread roller ) * 16-22 (Choose 2.5 thread roller), 425-32 (Choose 3.0 thread roller), 36-40 (Choose 3.0 or 3.5 thread roller)

Main motor power: 5.5KW or 7.5kw

Power: 3P 380V 50HZ / 3P 220V 50HZ

Speed reducer: 62-75 pm

Thread length: Positive thread length 100mm, Negative Thread Length 80mm

Weight: 400KG

Size (mm): 1300*700*1100

 ▍Advantage

Synchronous two-step working improves production efficiency, servo control ensures uniform thread size, low material loss by cold rolling forming.

▍Application

Mass straight thread coupler factory, large centralized rebar processing base

▍FAQ

Can it process plain round bar directly?

No, designed specially for ribbed deformed steel rebar.

▍TKD Description

Full automatic integrated rib peeling thread rolling machine realizes synchronous rib stripping and thread rolling for mass straight thread rebar production.
