Full Automatic Upset Forging Rebar Thread Forming Machine For Construction

Different from split separate processing units, this integrated automatic upset forging machine combines upset shaping and thread machining in single equipment. After bar feeding, hydraulic cylinder extrudes rebar end for upset thickening automatically, then completes parallel thread rolling without secondary clamping. It targets mass production of upset forged rebar coupler blanks for coupler manufacturers.

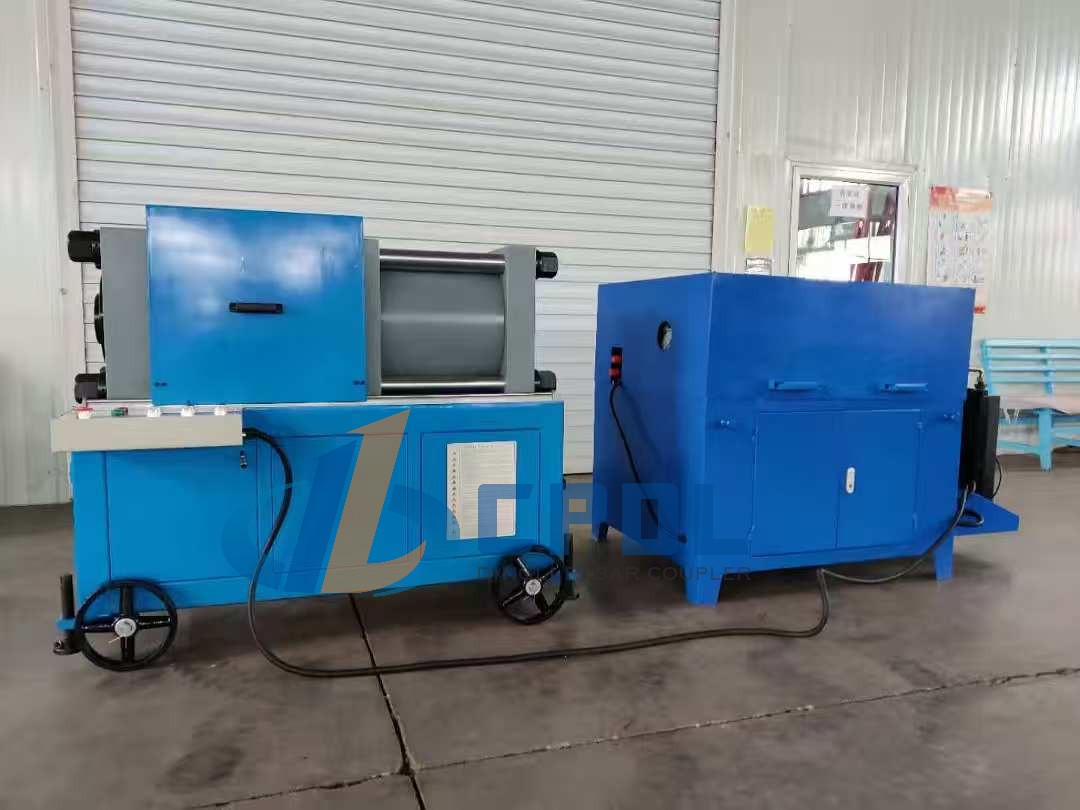

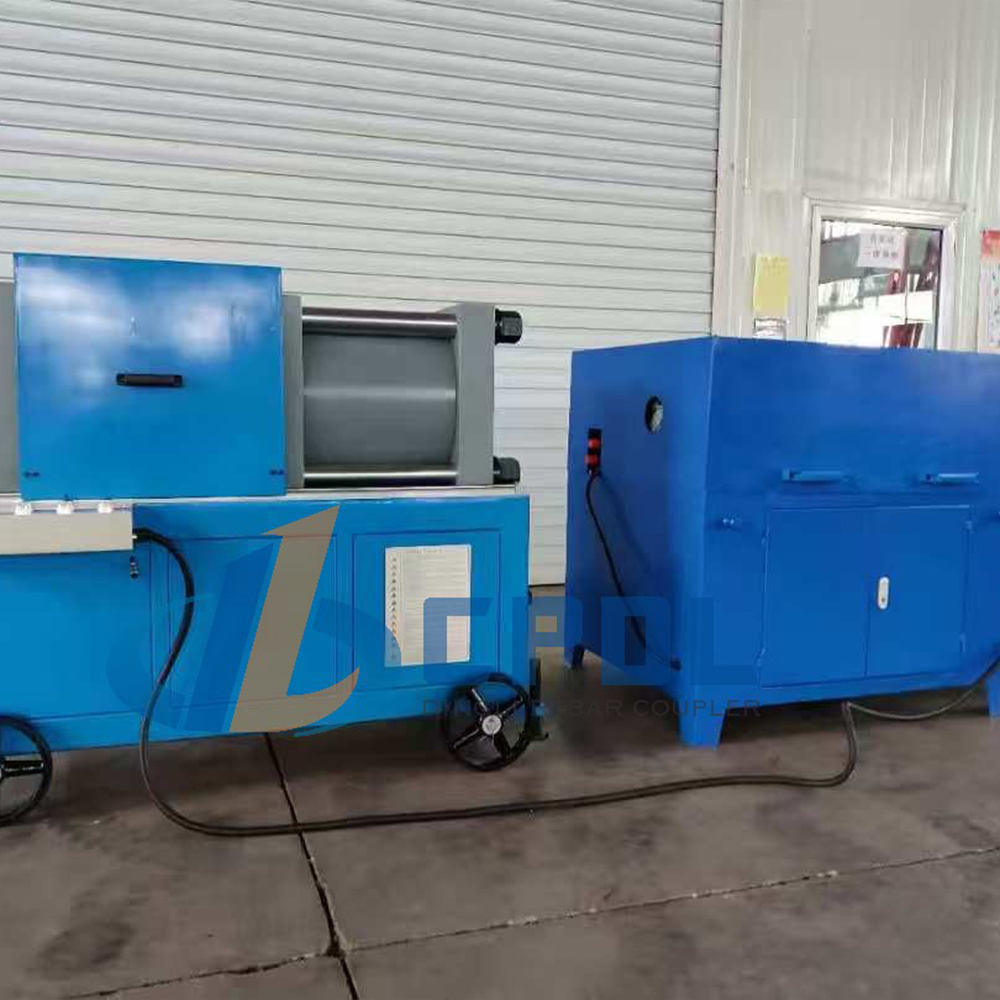

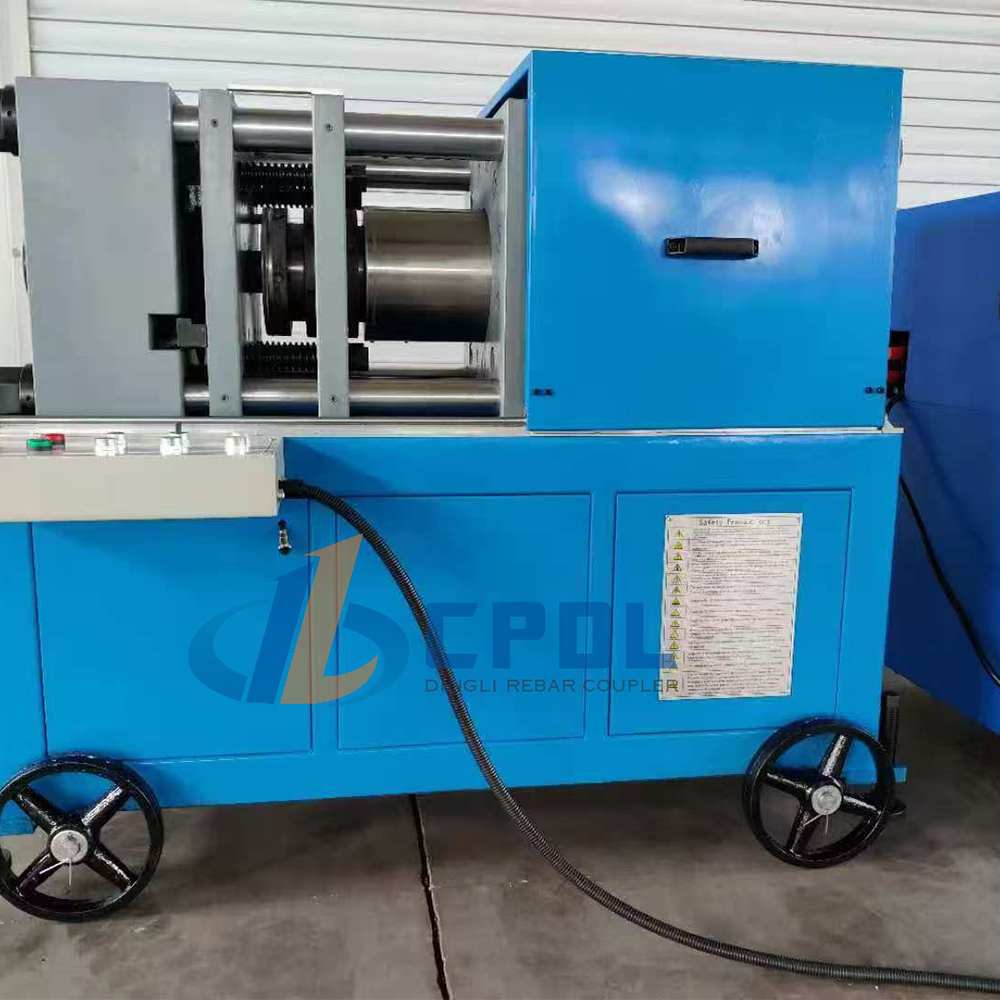

▍MAIN TECHNICAL PARAMETERS （DC2500）

Overall Dimensions (mm)：1380 × 665 × 1235

Weight (Kg)：≈ 1480

Maximum Pressure (MPa)：31.5

Maximum Upsetting Force (KN)：2500

Processed Rebar Specification (mm)：16 ~ 40

Piston Rod Center Height (mm)：940

Maximum Stroke of Piston Rod (mm)：245

Effective Upsetting Stroke of Piston Rod (mm)：10 ~ 35

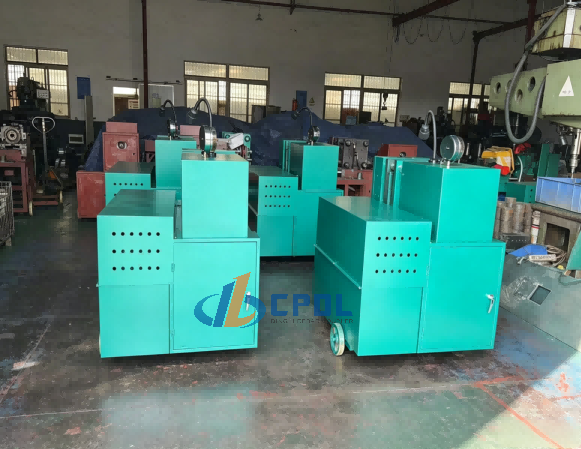

▍MAIN TECHNICAL PARAMETERS （GD-150）

Model: 10MCY-YB-1500

Rotation: 1440r /min

Hydraulic System Settings: The system uses a pump motor group

Rated pump pressure: 31.5Mpa

Motor power: 7.5kw 380V 50HZ

▍MAIN TECHNICAL PARAMETERS （HDCJ-40S）

Processing Range：16—¢40mm

Motor Power: Y132M-411KW

Power Supply：3P 50HZ

Hydraulic Pump: 10MCY14-1B  31.5MPa

Hydraulic Oil:46# hydraulic oil

Weight and Dimensions: 1000KG 1350 x950x1750mm

Core Advantages

PLC automatic control cuts manual operation by over 60% and improves finished product consistency greatly. Integrated processing avoids position deviation caused by repeated clamping. Hydraulic stable output ensures uniform upset dimension, reducing defective rate of subsequent coupler production. Customized processing stroke supports various rebar specification production.

Packing & Delivery

Standard machine packed in export wooden case, spot equipment shipped within 7 working days, customized configuration negotiable delivery cycle.

Application

Professional coupler production factory, centralized steel bar processing yard, large precast component factory.
