Φ18 Radial Cold Extrusion Rebar Sleeve for Mid-Rise Column

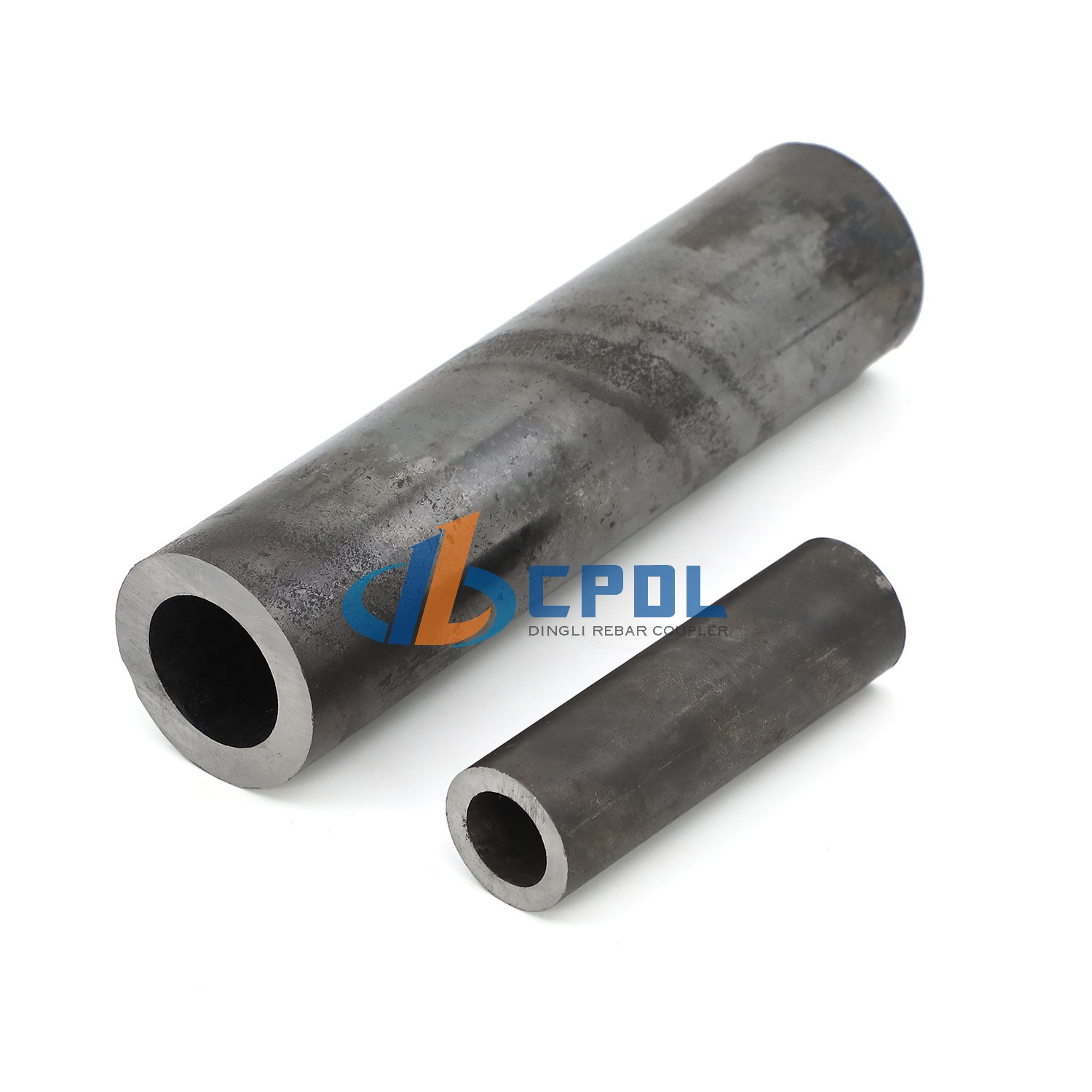

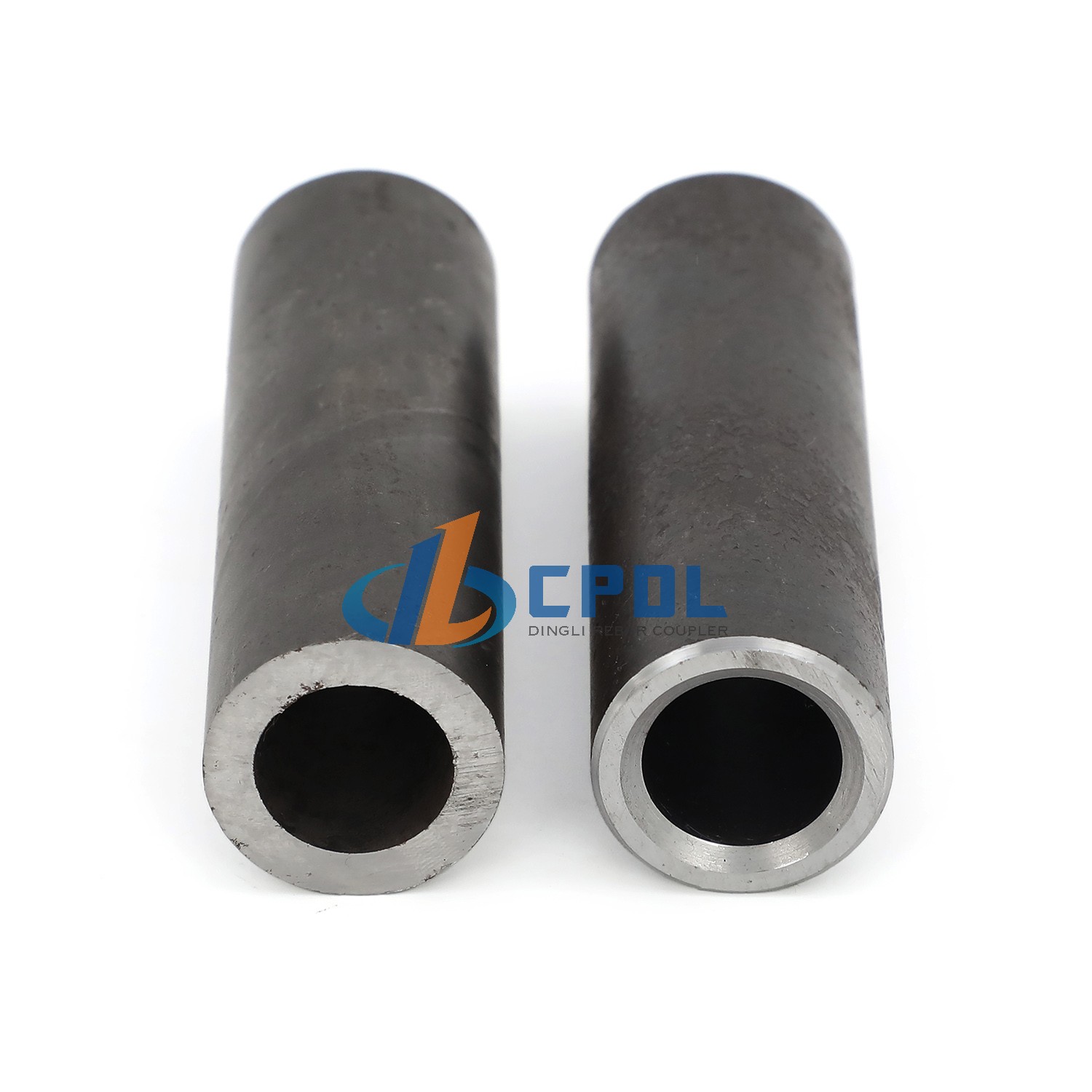

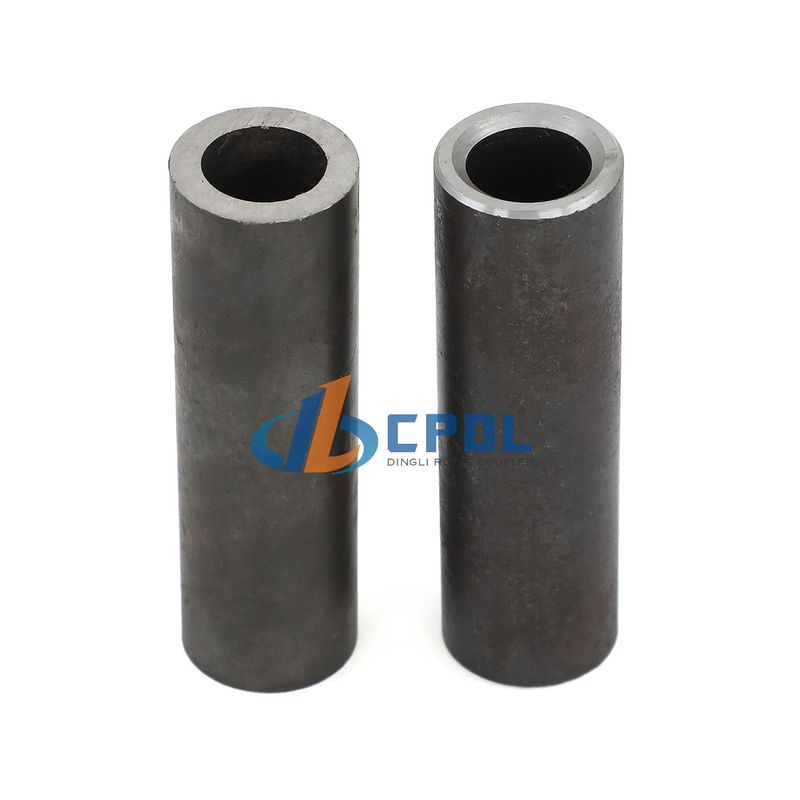

The Φ18 cold extrusion rebar coupler is made of high-quality Q345B seamless pipe, with a length of 110mm, outer diameter of 34mm and single weight of 0.38kg. It is equipped with 3 pairs of bilateral crimping points and 35-40Mpa standard working pressure, featuring stable radial clamping force and excellent structural stability.

▎Product Advantages:

• Adapts to non-rotatable vertical rebar on site, no threading process required;

• excellent anti-vibration and anti-fatigue performance, no joint looseness under long-term vertical tension and compression load;

• compliant with British BS8110 and Chinese JGJ107 dual standards;

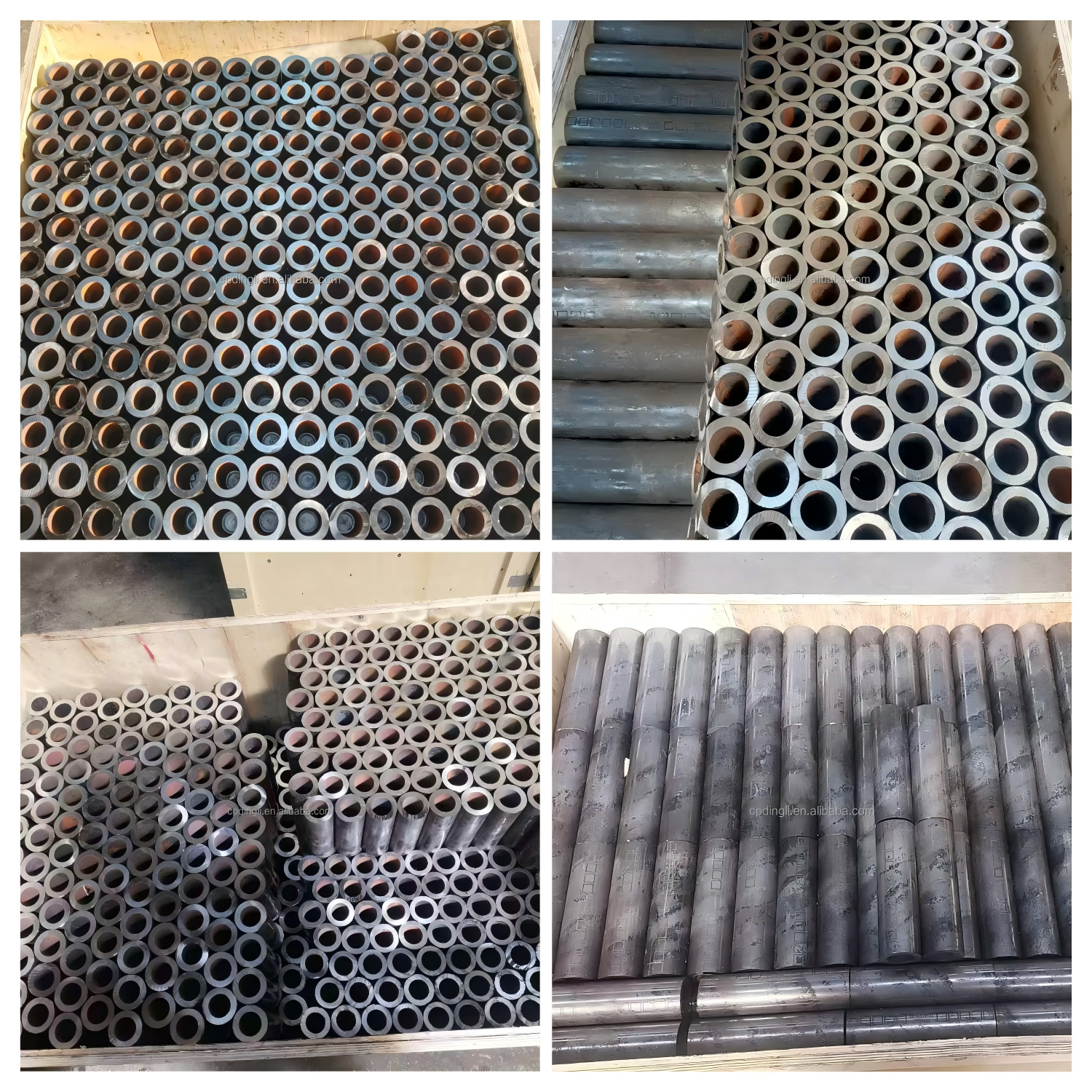

• light weight for easy handling and batch transportation.

▎Application Scenarios:

Mainly applied to vertical main reinforcement connection of 6-12 stories mid-rise residential frame columns, secondary beams of small viaducts and reinforcement splicing of municipal small pipe galleries, suitable for 18mm HRB400/HRB500 ribbed rebar.

▎Operation Method:

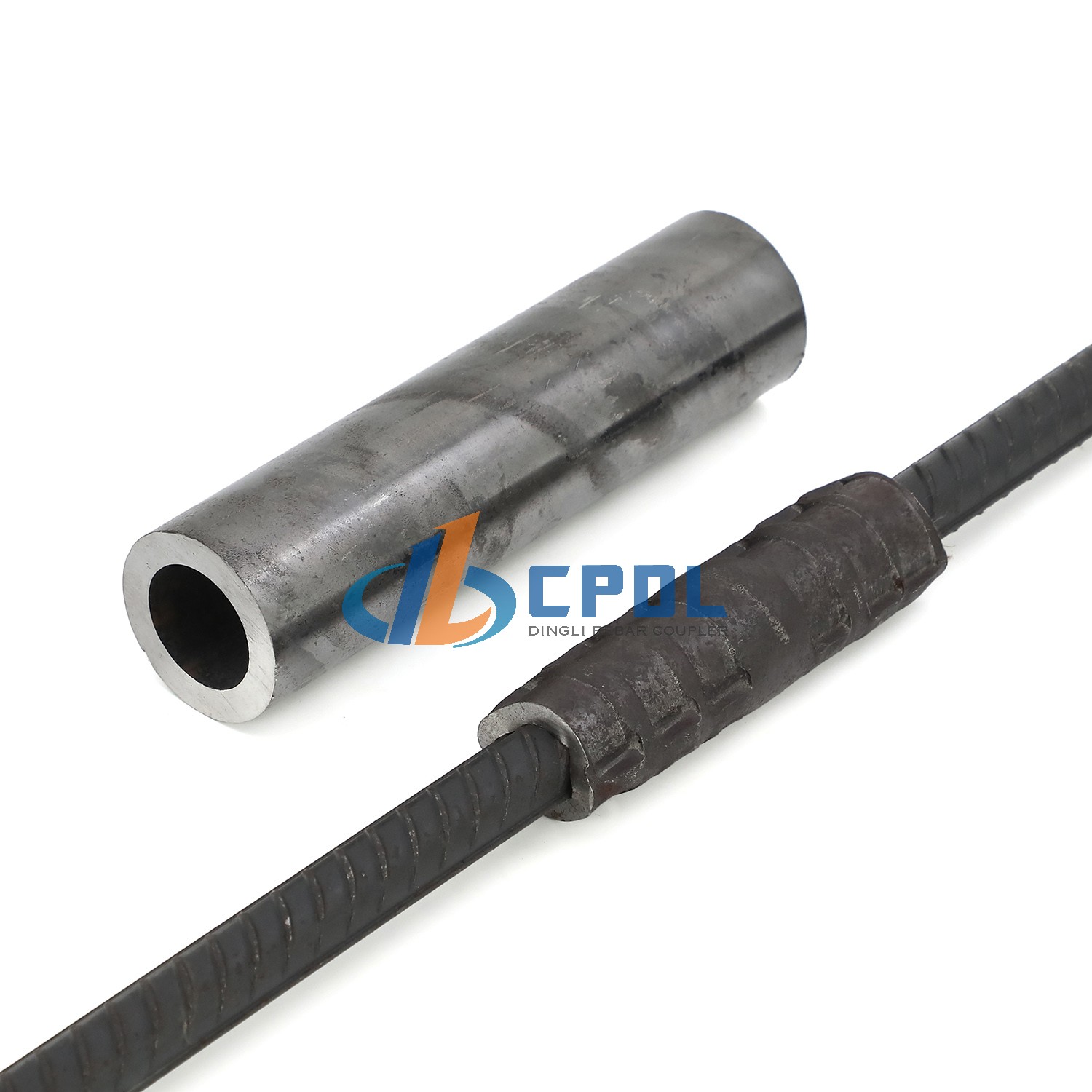

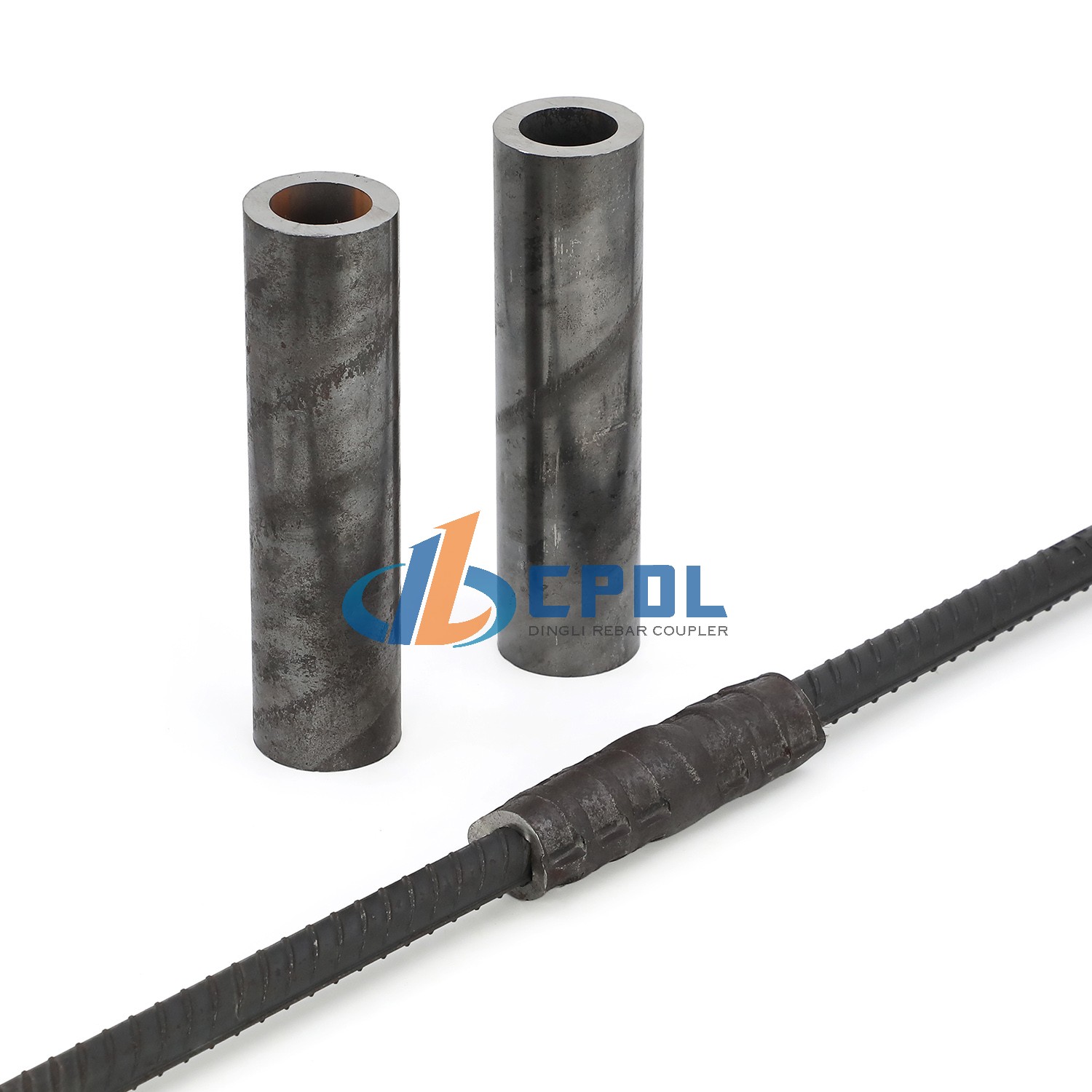

Clean and straighten the rebar end, mark the embedding scale; sleeve the coupler in place; extrude laterally with 35-40Mpa pressure from the middle to both sides; embed the other rebar and perform secondary extrusion to form a permanent connection.
